Ductwright HVAC Calculator

What it does

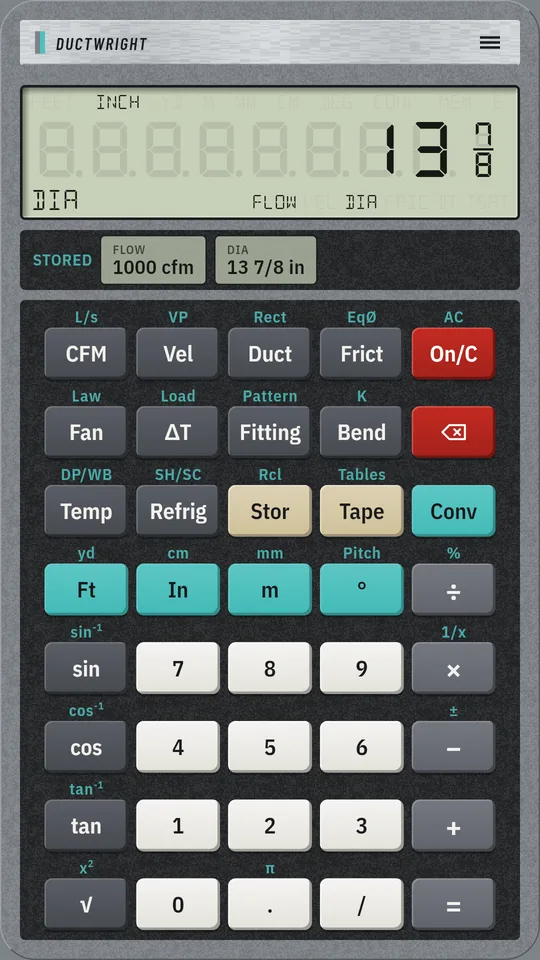

Ductwright is an HVAC and sheet metal calculator for HVAC technicians, installers, sheet metal workers and apprentices. It works like a hardware calculator: a galvanized-grey chassis, real keys and a clear LCD, with each answer labelled so you know what you are reading.

Worked examples

• Duct size. 1000 cfm at 0.1 in wg per 100 ft -> 13 7/8 in round (then 949 fpm).
• Sensible load. 1200 cfm, 20 F rise -> 25920 BTU/h sensible (then tons, kW).
• Superheat. R410A at 118 psig, 55 F suction line -> superheat 15.2 F.
• Fan laws. 1000 to 1200 rpm, 2000 cfm -> new airflow 2400 cfm (then SP, BHP).
• Taper pattern. Round taper 12 in to 6 in over 8 in -> slant 8 9/16 (then pattern radii, sweep).
• Metric duct. Metric: 1000 L/s -> 469 mm round (then 5.79 m/s).

How it's calculated

Every trade key and the formula behind it, as shown in the app's key guide. A second legend is the shifted function.

CFM L/sAirflow / Convert airflow

Stores the typed airflow (cfm, or L/s in metric), or solves Q = Area × Velocity from the duct and velocity; shifted converts between cfm and L/s.

Vel VPAir velocity / Velocity pressure

Stores the typed velocity (ft/min, or m/s in metric), or solves V = Q ÷ Area. Shifted: a typed velocity pressure gives V = 4005 × √VP (or √(Pv ÷ 0.6) m/s); blank gives the velocity pressure of the stored velocity.

Duct RectRound duct size / Rectangular duct

Stores the typed round diameter, or sizes round galvanized duct by equal friction: D = (0.109136 × Q^1.9 ÷ friction)^(1 ÷ 5.02), friction 0.1 in wg per 100 ft unless stored. Shifted stores side A, or solves side B for the stored diameter.

Frict EqØFriction rate / Equivalent diameter

Stores the typed friction rate (in wg per 100 ft, or Pa/m), or solves it for the stored airflow and duct. Shifted stores side B, or gives the round equivalent De = 1.30 × (A × B)^0.625 ÷ (A + B)^0.25.

Fan LawFan speed / New fan speed

Stores the present fan rpm; shifted stores the new rpm. Blank steps through the fan laws: flow × N2/N1, static pressure × (N2/N1)², brake power × (N2/N1)³.

ΔT LoadTemperature difference / Sensible load

Stores the air temperature rise or drop (°F, or K in metric). Shifted gives sensible heat Q = 1.08 × cfm × ΔT BTU/h (1.2 × L/s × ΔT W), then tons and kW; a typed load solves the airflow instead.

Fitting PatternFitting / Taper pattern

Stores a typed offset (or angle). Blank gives offset travel √(O² + L²) and angle, and radius elbow throat r × θ, heel (r + A) × θ and centreline (r + A ÷ 2) × θ. Shifted stores the length, or lays out a round taper: slant, pattern radii and sweep 360 × R ÷ Rp.

Bend KBend allowance / K-factor and radius

Stores the typed sheet thickness (or angle). Blank gives bend allowance (π × θ ÷ 180) × (Ri + K × T), bend deduction and outside setback. Shifted stores a typed K-factor, or a radius typed with a unit key; blank steps K 0.33 and 0.44.

Temp DP/WBAir temperature / Dew point and wet bulb

Stores the dry-bulb temperature. Shifted stores the typed relative humidity; blank gives dew point (Magnus) and wet bulb (Stull 2011, valid 5 to 99 % RH and −20 to 50 °C).

Refrig SH/SCRefrigerant / Superheat or subcooling

A typed gauge pressure (psig, or bar in metric) gives the saturation temperature; blank steps through R410A, R32, R454B, R134A, R290 and R22. Shifted: a typed line temperature gives superheat above dew or subcooling below bubble.
